[SOLVED] How to Change Layout/Position of Predecessor, Successor and Linked Elements

babynus
Offline
Administrator
Moderator

30 Jul 2015 12:45 #13 by babynus

Replied by babynus on topic How to Change Layout/Position of Predecessor, Successor and Linked Elements

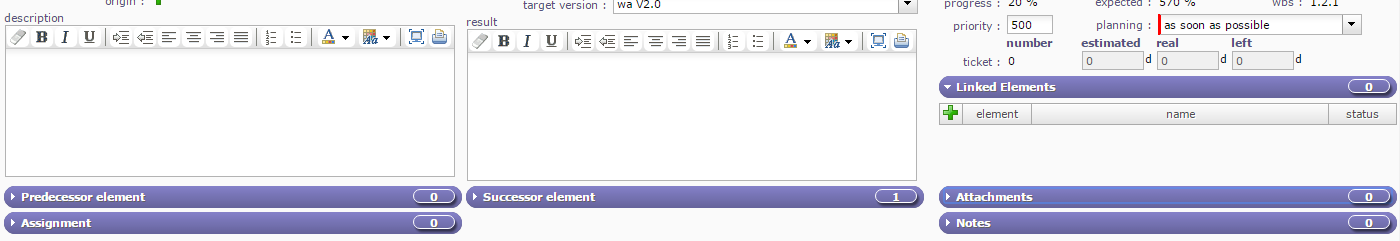

Here is result on 3 columns :

Babynus
Administrator of ProjeQtOr web site

Please Log in or Create an account to join the conversation.

iconic
Topic Author
Offline
Elite Member

30 Jul 2015 14:42 #14 by iconic

Replied by iconic on topic How to Change Layout/Position of Predecessor, Successor and Linked Elements

Yes, that is similar to what I have, and there is the issue I am having.

You see, I want Notes and Linked elements to be in the position of where Predecessor and Successor Elements are.

In essence, I want Notes in the first column where Predescessor is.

Is there anyway i can do this?

Please Log in or Create an account to join the conversation.

iconic
Topic Author
Offline
Elite Member

01 Aug 2015 12:12 #15 by iconic

Replied by iconic on topic How to Change Layout/Position of Predecessor, Successor and Linked Elements

Hi there,
Any further updates with this would be greatly appreciated

Please Log in or Create an account to join the conversation.

babynus
Offline
Administrator
Moderator

01 Aug 2015 17:13 - 01 Aug 2015 17:13 #16 by babynus

Replied by babynus on topic How to Change Layout/Position of Predecessor, Successor and Linked Elements

Field description should be (for instance)

 public $_sec_description;
  public $id;    // redefine $id to specify its visible place
  public $reference;
  public $name;
  public $idActivityType;
  public $idProject;
  public $externalReference;
  public $creationDate;
  public $idUser;
  public $idContact;
  public $Origin;
  public $description;
  public $_sec_treatment;
  public $idActivity;
  public $idStatus;
  public $idResource;
  public $handled;
  public $handledDate;
  public $done;
  public $doneDate;
  public $idle;
  public $idleDate;
  public $cancelled;
  public $_lib_cancelled;
  public $idTargetVersion;
  public $result;
  public $_sec_Progress;
  public $ActivityPlanningElement; // is an object
   public $_sec_Assignment;
  public $_Assignment=array();
  public $_Note=array();
  public $_sec_Link;
  public $_Link=array();
  public $_Attachment=array();
  public $_sec_predecessor;
  public $_Dependency_Predecessor=array();
  public $_sec_successor;
  public $_Dependency_Successor=array();

  public $_nbColMax=3;

and in /view/objectDetail.php, about line 1676 , values for $arrayPosition , correct

'note'=>          array('float'=>'left',  'clear'=>'left')

'link'=>          array('float'=>'left', 'clear'=>'none'),

Pay attention, these change will have to be reapplied after each upgrade of new version.

Babynus
Administrator of ProjeQtOr web site

Last edit: 01 Aug 2015 17:13 by babynus.

Please Log in or Create an account to join the conversation.

iconic
Topic Author
Offline
Elite Member

03 Aug 2015 01:48 #17 by iconic

Replied by iconic on topic How to Change Layout/Position of Predecessor, Successor and Linked Elements

I made the changes, however there was no change. The notes are still showing on the left.

Here is the code to show you that I made the changes

$arrayPosition=array(
         'treatment'=>     array('clear'=>(($nbCol==2)?'right':'none')),
         'progress'=>      array('float'=>(($nbCol==2)?'right':'left'), 'clear'=>(($nbCol==2)?'right':'none')),
         'predecessor'=>   array('clear'=>(($nbCol==2)?'both':(($classObj=='Activity')?'left':'none'))),
         'successor'=>     array('float'=>(($nbCol==2 or $classObj!='Project')?'left':'right'),  'clear'=>'none'),

         //'subprojects'=>   array('float'=>(($nbCol==2)?'left':'left'),   'clear'=>(($nbCol==2)?'left':'none')),
         'versionproject_versions'=>array('float'=>(($nbCol==2)?'right':'left'),  'clear'=>'right'),

         'version'=>       array('float'=>(($nbCol==2)?'right':'left'),  'clear'=>'none'),
         'approver'=>      array('float'=>'right','clear'=>'right'),
         'lock'=>          array('float'=>(($nbCol==2)?'left':'right'),  'clear'=>(($nbCol==2)?'none':'right')),

         'assignment'=>    array('float'=>'left','clear'=>(($nbCol==2)?'left':'none')),
         'attendees'=>     array('float'=>'left','clear'=>(($nbCol==2)?'left':'none')),

        //'periodicity'=>    array('float'=>'left','clear'=>'left'),

        'internalalert'=>  array('float'=>'right'),

        'expensedetail'=>      array('clear'=>'left'),
         'billline'=>      array('clear'=>'left'),
         'link'=>          array('float'=>'left', 'clear'=>'none'),
         'attachment'=>    array('float'=>'left',  'clear'=>'none'),
         'note'=>          array('float'=>'left',  'clear'=>'left')

Please Log in or Create an account to join the conversation.

iconic
Topic Author
Offline
Elite Member

05 Aug 2015 06:53 #18 by iconic

Replied by iconic on topic How to Change Layout/Position of Predecessor, Successor and Linked Elements

Hi there,
Are they are further updates with regards to this?

Please Log in or Create an account to join the conversation.
